Fog Cannons / Fog Mist Generator

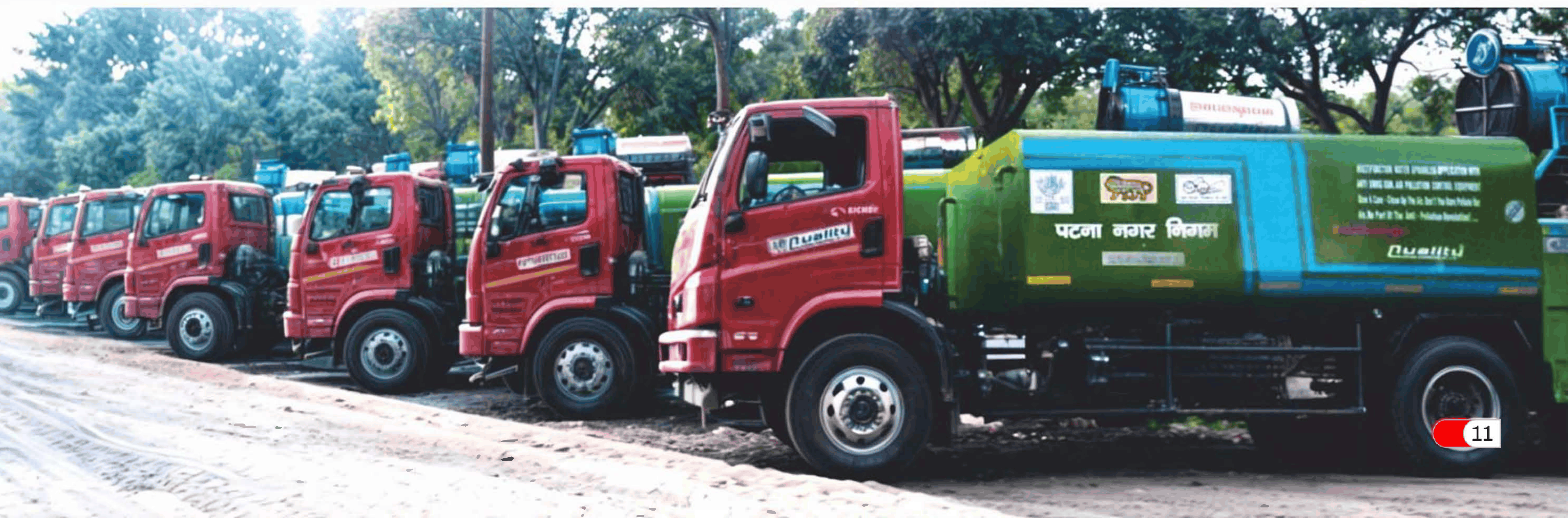

A - Truck Mounted Fogg Cannon ( Model: QEEMFC-10LC )

Our Truck-Mounted Fog Cannon is a versatile piece of equipment commonly used for various industrial, municipal, and environmental applications. It is designed to generate a fine mist or fog, which can be utilized for a range of purposes such as dust suppression, odor control, disinfection, and cooling. This type of equipment is mounted on trucks, making it easily transportable to different locations for efficient and targeted fogging operations. By offering a multi-functional approach to various industrial and environmental challenges, the truckmounted fog cannon contributes to improved air quality, enhanced sanitation, and more efficient management of dust and odors, ultimately promoting a cleaner and healthier living environment.

Advantages
  • Dust Suppression
  • Odor Control
  • Disinfection and Sanitization
  • Cooling and Humidification
  • Environmental Remediation
  • Adjustable Spray Range and Volume
  • Integrated Monitoring and Safety Features
  • Rugged and Durable Design
  • Large Tank Capacity
  • Advanced Nozzle System
  • High-Pressure Pump
Application
AIR POLLUTION

Anti-smog gun sprays pressurized water droplets into the air and helps PM2.5 & PM10 dust particles settle down.

JETTING

High pressure jetting unit is capable of choking block & overflow civil & industrial drains and sewer lines.

HORTICULTURE

Use in horticulture purpose for tree sprinkling, park watering due to water crises.

Technical Data
Capacity From 1 kL upto 12 kL
Mounted on Truck Chassis
Material Mild Steel / Stainless
Drive DG Genset 30–40 KW
Pump Multi Stage Pump
Nozzles Stainless Steel 304
Cannon Gun Operation Control Panel with Remote
Blowers RPM 2800 @ 4000 CFM
Blower Motor 15–30 HP
Rotation 180°
Control Panel Schneider / L&T
High Pressure Trigger Gun 30–40 Metres
Paint & Design Customised
Features

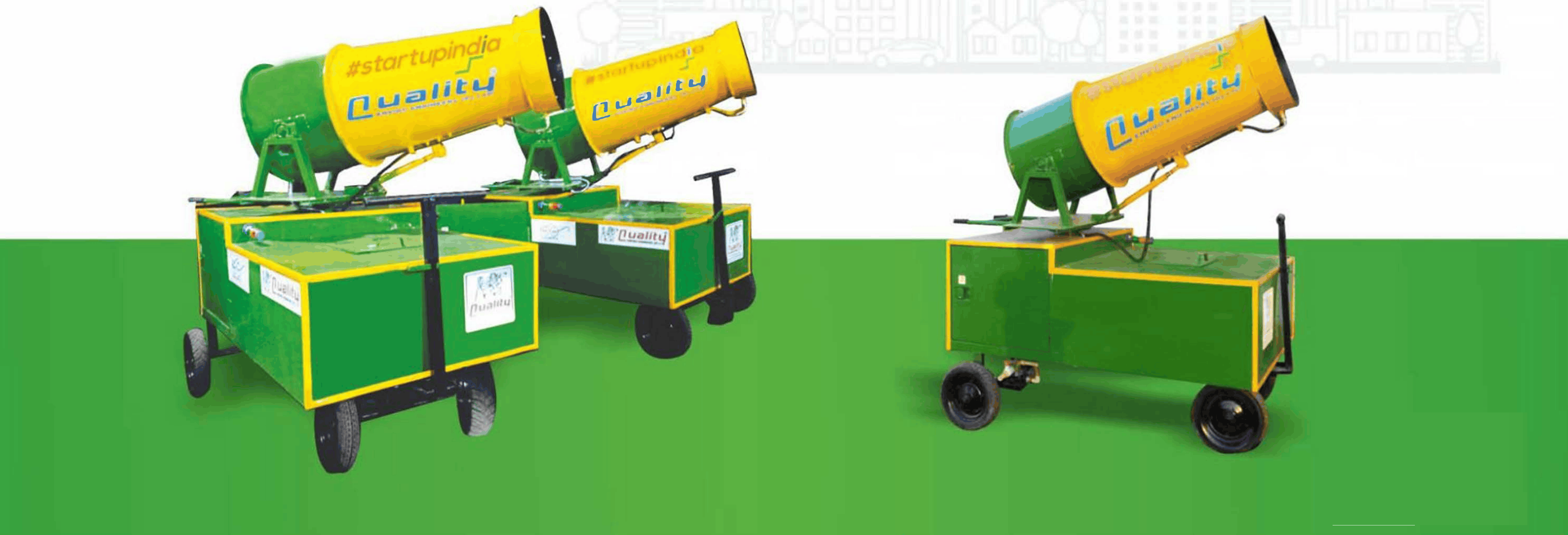

ANTI SMOG GUN MANUAL / SEMI AUTOMATIC

MODEL : QEEFOG 70-100 Mtr 40-50 Mtr 30 Mtr
Equipment Type (i.e., Trolley/post mounted etc.) Trolley Mounted Trolley Mounted Trolley Mounted
Cone Arrangement in front of Fan casing Conical Casing Conical Casing Conical Casing
Canon Rotation 330 deg. 330 deg. 330 deg.
Canon Rotation Mechanism Hydraulic / Mechanical Hydraulic / Mechanical Hydraulic / Mechanical
Tilting Angle 60 deg. 60 deg. 60 deg.
Tilting Mechanism Mechanical Mechanical Mechanical
Blower Capacity 80000 M³/hr 50000 M³/hr 40000 M³/hr
Blower drive 40 kW 15 kW 7.5 kW
Blower rpm 2800 2800 2800
Control Panel YES YES YES
Pump Specifications 15 M³ @ 8 BAR 5 M³ @ 8 BAR 2 M³ @ 8 BAR
Pump Drive, kW rating 4 kW (3 Phase) 4 kW (3 Phase) 2 kW (3 Phase)
Hose Details Oil resistant synthetic rubber / wire braid reinforcement Oil resistant synthetic rubber / wire braid reinforcement Oil resistant synthetic rubber / wire braid reinforcement
Isolation valves Ball & Globe Valve Ball & Globe Valve Ball & Globe Valve
Mist spray nozzles Nos. 30 Nos. 20 Nos. 15 Nos.
Mist Spray nozzle specifications, if applicable Hollow Cone 2-3 LPM @4-5 bar Hollow Cone 2-3 LPM @4-5 bar Hollow Cone 2-3 LPM @4-5 bar
Y-Strainer, if applicable YES YES YES
Water flow rate 7.5 LPM 3.5 LPM 1.5 LPM
Water tank 500 L 500 L 500 L
Electric power supply 440 V 440 V 440 V
Pump Location Under Fog Cannon Under Fog Cannon Under Fog Cannon
Water storage Tank Location In Built Trolley In Built Trolley In Built Trolley
Total Equipment Weight Empty Weight 1700 kg Empty Weight 1000 kg Empty Weight 700 kg
